Building Material Shops 200kg Pneumatic Pneumatic Scissor Lift Table Platforms

2 Units
MOQ
$650.00(2 - 3 Units) $635.00(>=4 Units)
Prijs
Building Material Shops 200kg Pneumatic Pneumatic Scissor Lift Table Platforms
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Voorwaarde: Nieuw
Toepasselijke Industrie: Bouwmateriaalwinkels, MachinesReparatiewerkplaatsen, Productieinstallatie, Voedsel & Drankfabrie
Toonzaalplaats: Niets
Liftmechanisme: Schaarlift
Liftaandrijving/Aandrijving: Lucht/Pneumatisch
Macht: --
Min. het Opheffen Hoogte: 285mm
Lijstgrootte: 1000 x 500mm
Algemene Afmetingen: 1000/500/285mm
Gewicht: 96kg
Garantie: 1 jaar
Het Rapport van de machinestest: Verstrekt
Video uitgaand-inspectie: Verstrekt
Marketing Type: Heet Product 2019
Garantie van kerncomponenten: 1 jaar
Kerncomponenten: Pomp
Stel type in werking: Pneumatisch
Capaciteit: 100-200kg
max. opgeheven hoogte: 750mm
min. verminderde hoogte: 285mm
platformgrootte: 1000 x 500mm
luchtlevering: 100 psi of 0.80Mpa
Het opheffen snelheid: 75 mm per seconde
Oppervlaktebehandeling: met een laag bedekt poeder
basiskleur: Verkeerssinaasappel 2009
Na de Garantiedienst: Videotechnische ondersteuning, Onlineondersteuning, Vervangstukken, Gebiedsonderhoud en de reparatie
Lokale Plaats ServiceÂ: Niets
Verleende naverkoop de Dienst: Vrije vervangstukken, en, Gebiedsonderhoud en het reparatiedienst Gebiedsinstallatie die, die Videot
Certificering: CE
Basis informatie
Certificering: CE
Betalen & Verzenden Algemene voorwaarden
Packaging Details: standard export package - plywood pallet & carton
Productomschrijving
Product Description

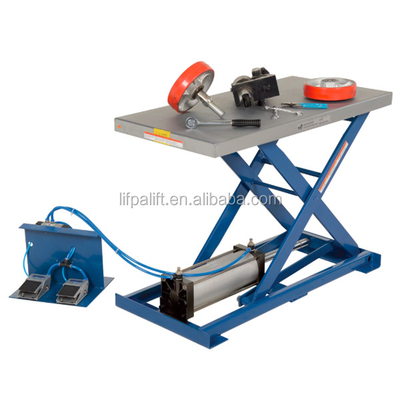

200kg Air Powered Pneumatic Scissor Lift Table

The Air Powered Pneumatic Scissor Lift Table features foot operated controls for raising and
lowering the scissor platform.
A perfect choice for use in many environmentally sensitive applications.
No electrical power or hydraulic oil is required.



Real Pictures





Product Highlights



Air-cylinder - No Electrical power or hydraulic oil is required







User-friendly foot operated controls







• Optional SUS 304 Grade deck





Features

Portable ergonomic lift table minimizes workers bending and lifting

• Perfect for use in many environmentally sensitive applications

• No electrical power or hydraulic oil is required

• All steel frame with powder coated finish

• Foot control for effortless operation

• Custom size and specs available





Main Parameters

Model   PG-10-P PG-20-P
capacity kg 100 200
table size mm 1000 x 500 1850 x 700
raised height mm 750 1250
lowered height mm 285 300
air supply Mpa 0.80 0.80
lift speed mm/s 78 72
weight kg 84 128





Optional Equipment
